Een Dual Pentium 133Mhz-er
En hier de Foto's
van de kast enz.
Nu nog een Case-Mod.
Maar daar moet ik eerst nog even
een leuk idee voor opdoen.
Hier alvast wat info:
The DP5 is a dual-Pentium™ (3.3V) system board that utilizes the PCI/ISA architecture. It has two zero-insertion force (ZIF)-type CPU sockets that accommodate Pentium CPUs. It also has three ISA-AT slots, two PCI slots, one ISA-/PCI-shared slot, and six 72-pin single in-line memory module (SIMM) sockets that can accommodate a maximum memory of 384 MB. The second-level cache is upgradable to 512 KB.
Four Intel Neptune application-specific integrated circuit (ASIC) chipsets, a SMC665 super I/O controller, a PC87410 enhanced local-IDE controller, a AIC-7870 SCSI chip and a single-chip Fast SCSI-2 host adapter are also incorporated in the motherboard to further enhance system performance. The board also conforms to the EPA “green” standards.
The board measures 220 mm x 330 mm (full baby-AT size).
Specifications
Microprocessor |
Pentium™ (3.3V) Processor 75/233 MHz AND accommodate MMX |
Memory |
384 MB |
SIMM Sockets |
Six 72-pin, 32-bit |
ASIC Chip |
Intel Neptune 82434NX 82433NX (2 pcs) 82379AB |
Bus Architecture |
ISA, PCI |
Expansion Slots |
Three ISA slots, two PCI slots and one ISA-/PCI shared slot |
Ports |
One parallel port (SPP/ECP/EPP) Two serial ports (UART 16C550) Dual-channel PCI mode 3 IDE One Fast SCSI-II port One floppy disk controller port |
Secondary Cache |
256 KB/512 KB |
BIOS |
Award |
RTC Type |
Dallas 12887A |
Board Size |
220 mm x 330 mm (full baby-AT) |

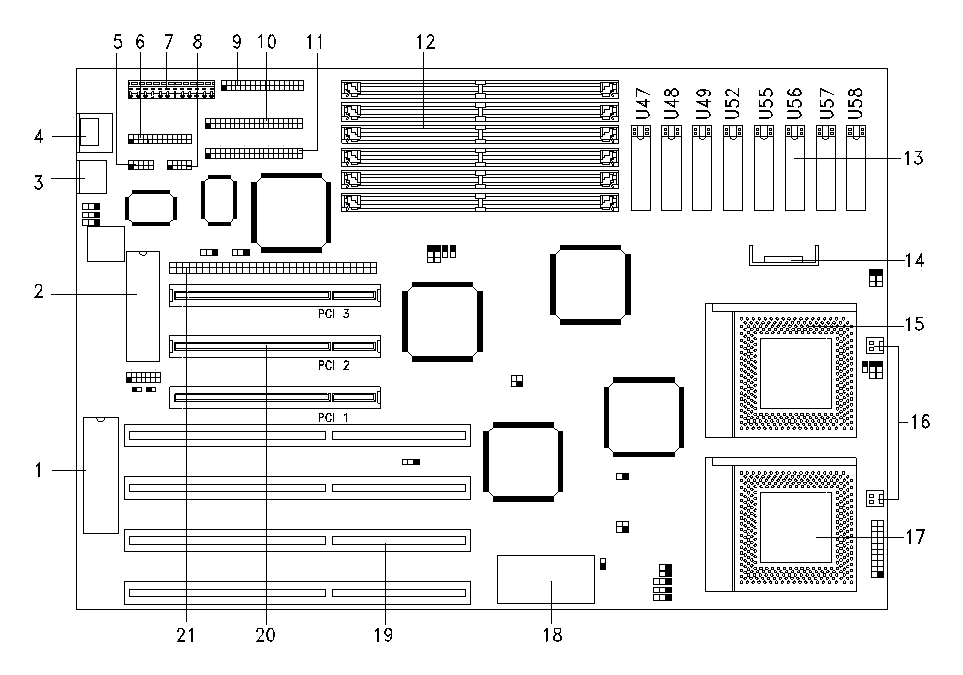

Board Layout:
1. Keyboard controller 11. IDE1 connector
2. System BIOS 12. SIMM sockets
3. PS/2 mouse connector* 13. Second-level cache
4. AT keyboard connector / 14. Voltage regulator
PS/2 keyboard connector
* 15. Primary CPU socket5. COM1 connector 16. 2-pin fan connectors
6. Printer port 17. Secondary CPU socket
7. Power connector 18. RTC/battery
8. COM2 connector 19. ISA slots
9. Floppy drive connector 20. PCI slots
10. IDE2 connector 21. SCSI connector
